Of course, house sewer connection contractors know how to connect your house when an existing sewer connection exists.  There are various sewer line connection types that exist for your home sewer to connect to. Some of them are known as spur connections, curb connections, or riser connections.

However, there are cases when there is no existing sewer connection for your home or property to connect to the public sewer. In these cases, licensed sewer connection contractors must actually build a connection. There are primarily three types of sewer connections that licensed contractors must know how to build.

new sewer connection

3 House Connections Sewer Connection Contractors Build

Of all the types of house sewer connections, there are 3 primary types that can be built for a house connection. Regardless of the type of sewer connection, in NYC there is a NYC DEP certification and permit process.

The connections themselves vary in difficulty, and how frequently they are appropriate. Here are the 3 types of sewer connections you may need to be built as a property owner:

1. A Drill In Connection

Making a drill in connection to a public sewer for a new house sewer connection is both the most common and the least costly. It typically involves using an electric or gas core drill to drill a hole into the public sewer. On vitrified clay public sewers, it only takes a couple of minutes. However, on larger poured concrete public sewers a core drill can take quite a bit longer. In terms of the cost to you as a property owner, it is relatively minimal, composing a small fraction of the cost of your sewer job.

2. Sewer Riser Connection

Building a sewer riser connection is the most challenging connection work for sewer connection contractors. It is closely monitored and inspected by NYC DEP field forces, and the DEP actually assumes future responsibility for its integrity after they sign-off on it. Of all the types of connections you may need for your house sewer, building a new riser connection is the most expensive.

3. Sewer Fold In Sewer Connection

The 3rd and final connection type that sewer connection contractors may be required to build is known as a fold-in connection. In terms of difficulty, it falls between a drill-in and building a new riser. A fold-in sewer connection is likewise more expensive than a drill-in. It is, on the other hand, substantially less expensive than a new riser. Here are the answers to 3 questions regarding a fold-in-house sewer connection.

sewer connection contractors

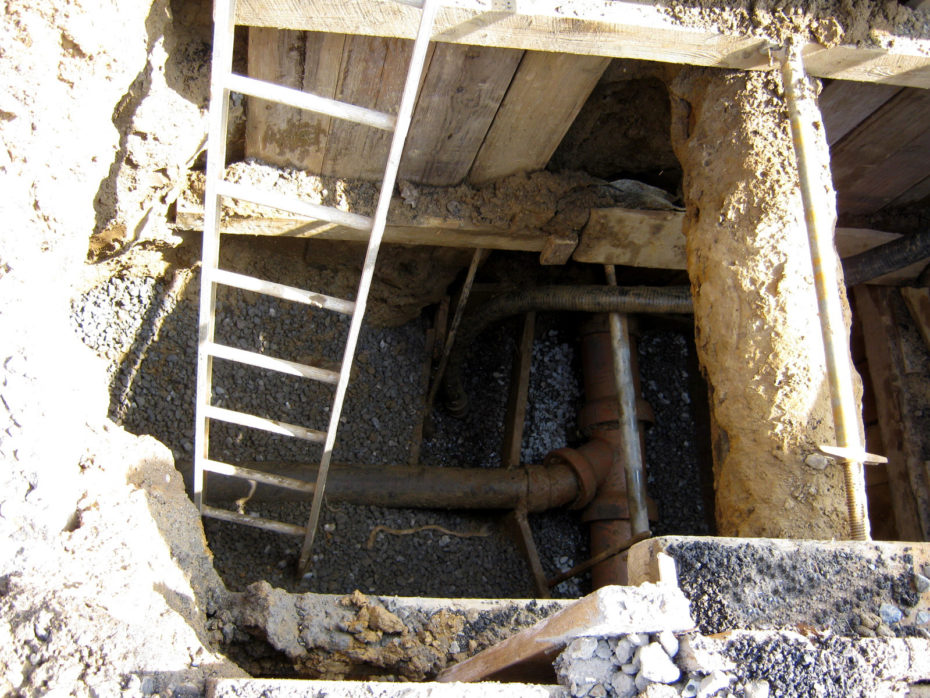

New fold-in connection before concrete encasement

When is a fold-in connection required?

Certain circumstances must exist for a fold-in connection to be required. First of all, no appropriate connection must already exist for your new house sewer. Secondly, the size of your proposed house sewer must be at least 2 sizes smaller than the public sewer itself. For instance, you are not permitted to drill into an 8″ public sewer to make a connection for a 6″ house connection. For a new and legal drill in connection to be made, the public sewer must be at least 10″ in diameter.

What is a fold-in connection?

A fold-in connection is typically made by removing 3 sections of an existing vitrified clay public sewer line. As an example, if the public sewer were an 8″ clay pipe, 3 sections of it would be removed. In place of the 3 straight pieces of 8″ clay pipe, an 8″ x 6″ Wye would be inserted. This Wye would allow for your house sewer to be connected.

How is a fold-in connection built?

As already stated above, a fold-in-house sewer connection demands work to be done directly on the public sewer. A Wye would be inserted in direct line with the run of the public sewer. Inserting this Wye keeps the integrity of the public sewer intact. Doing a drill-in on the other hand, would not leave enough pipe left on that section of the public sewer to retain its integrity.

After the 3 new sections of pipe are put together with the existing pipe on the public sewer, there are two final steps. If the new pipe is clay, each joint must be carefully caulked with oakum.  Then all new and existing sections exposed to the public sewer must be encased with ready-mix concrete.

The minimum strength required is 4,000 PSI, and it must be delivered by an approved Ready Mix Plant. Experienced sewer connection contractors handle new fold-in connections with little difficulty.
